Universal Robots UR20 Cobot

Long-reach cobot purpose-built for full-pallet palletising.

The UR20 was the first of Universal Robots’ next-generation arms. Its 1750 mm reach covers a full pallet from floor to top layer, and a lighter, stiffer joint design delivers faster cycle times without giving up the simplicity of a cobot.

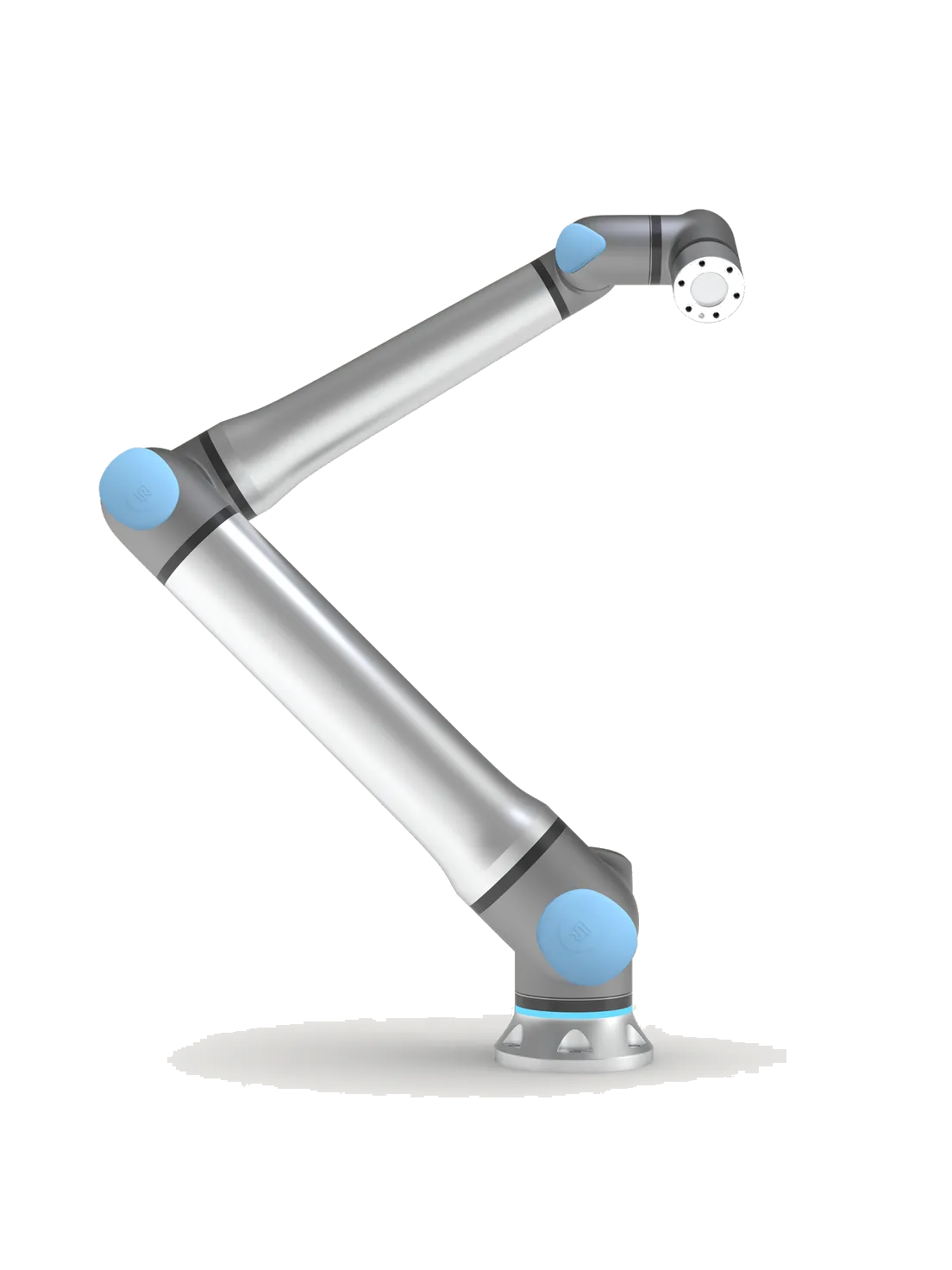

Universal Robots UR20 collaborative robot arm
Specifications

UR20 Specifications

Manufacturer-published figures from Universal Robots. Payload includes the gripper or tool.
Payload20 kg (25 kg with boundary conditions)
Reach1750 mm
Pose repeatability (ISO 9283)±0.1 mm
Maximum TCP speed5 m/s
FootprintØ245 mm
Weight64 kg
Degrees of freedom6 rotating joints
Applications

What the UR20 Does Best

Palletising →

Full-height pallet builds from a single base.

Machine tending →

Long-reach loading of large machines.

Pick and place →

Heavy case handling and depalletising.

Compare the full Universal Robots and FANUC range, see our collaborative robots overview, or browse grippers and accessories for the UR20.
