Efficiency & Speed
Immediate savings on your investment
Saves serious money on labour, with cycle times that earn the investment back fast.
Automatic Systems
Robotic Palletising Systems
Tired of lifting boxes? A collaborative palletising system stacks your product consistently, safely and around the clock, earning back your investment faster than you'd think.
Why Automate Palletising
The benefits stack up
Endless Versatility
So, what can be palletised?
Our Universal Robots palletising system is fully customisable to your requirements. It comfortably handles a wide variety of sizes, shapes and weights, and can serve single or multiple production lines at the same time.
Boxes & cartons
Sacks & bags
Bottles
Trays
Crates
Bundles

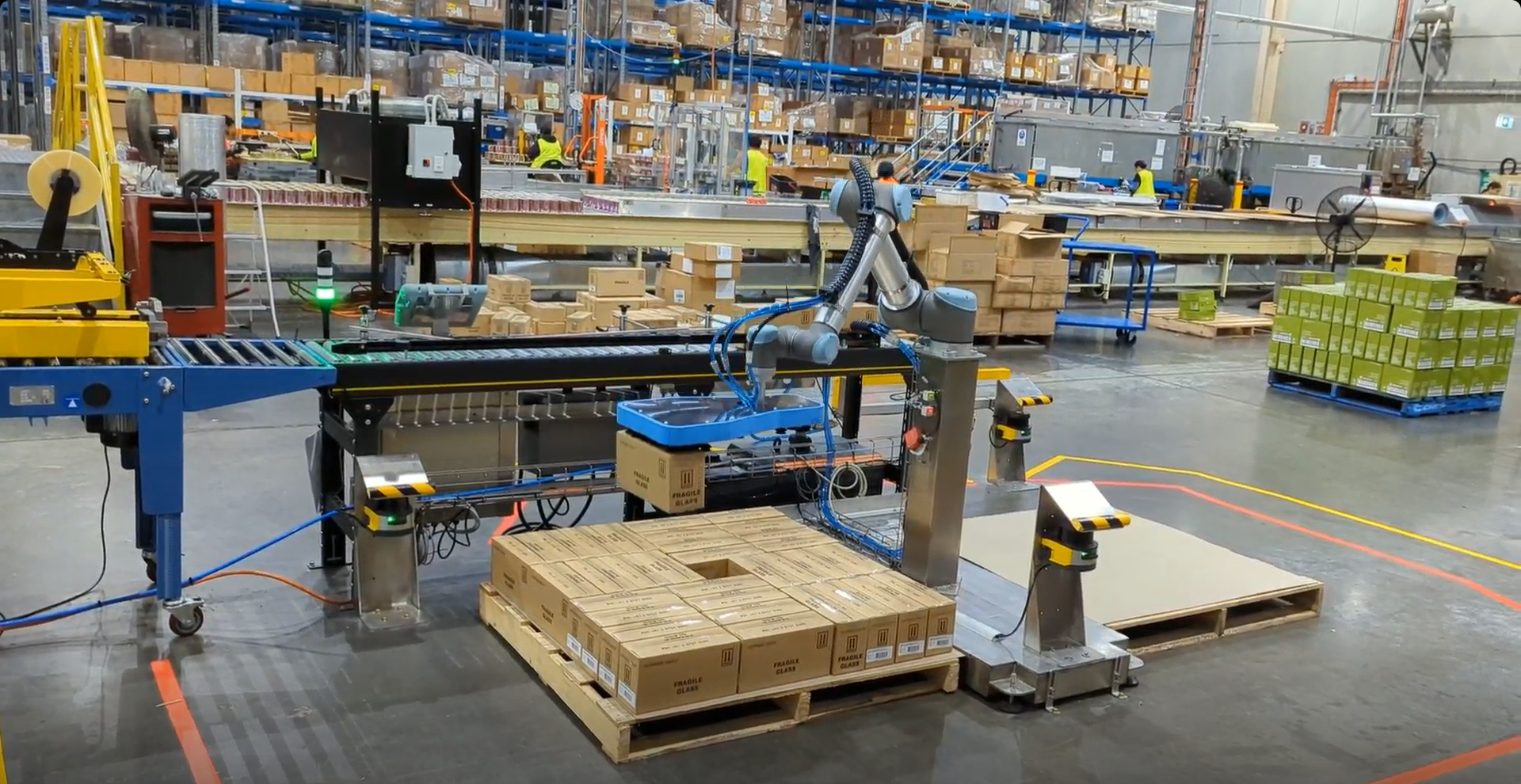

On the line
Palletising on the line
Want to learn more about other projects?
Built On Proven Technology
The technology behind the system
The collaborative robot arm at the heart of the cell, safe, flexible and proven across Australian manufacturing.
World-leading palletising software with a simple touch-screen interface, build new pallet patterns in minutes.
A robust lift column that extends the cobot’s vertical reach so it can build full-height pallets with ease.
Collaborative safety
Safety without cages

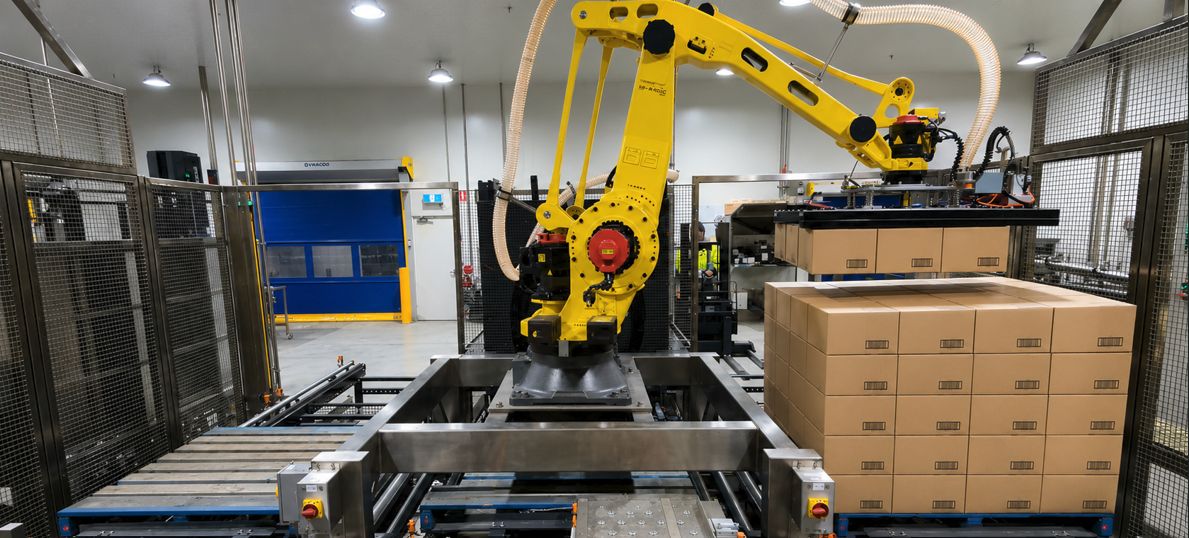

A conventional industrial palletiser works behind fixed guarding. A TRP cobot palletiser uses programmable Category 3 area scanners instead, which keeps the space around the cell open for your team.
COBOT
Open access
Slow zone
Stop
1
Open access
With no fixed guarding, operators have open access around the cell for pallet changes and day-to-day work.
2
Slows down
When someone approaches the cell, for example to replace a full pallet, the scanners slow the robot down.
3
Safety stop
If a person comes closer, the robot comes to a safety stop and is restarted with a push-button reset.
Cells are designed to comply with Australian Standards for collaborative robots, with support from our Certified Machine Safety Expert.
It Works Both Ways

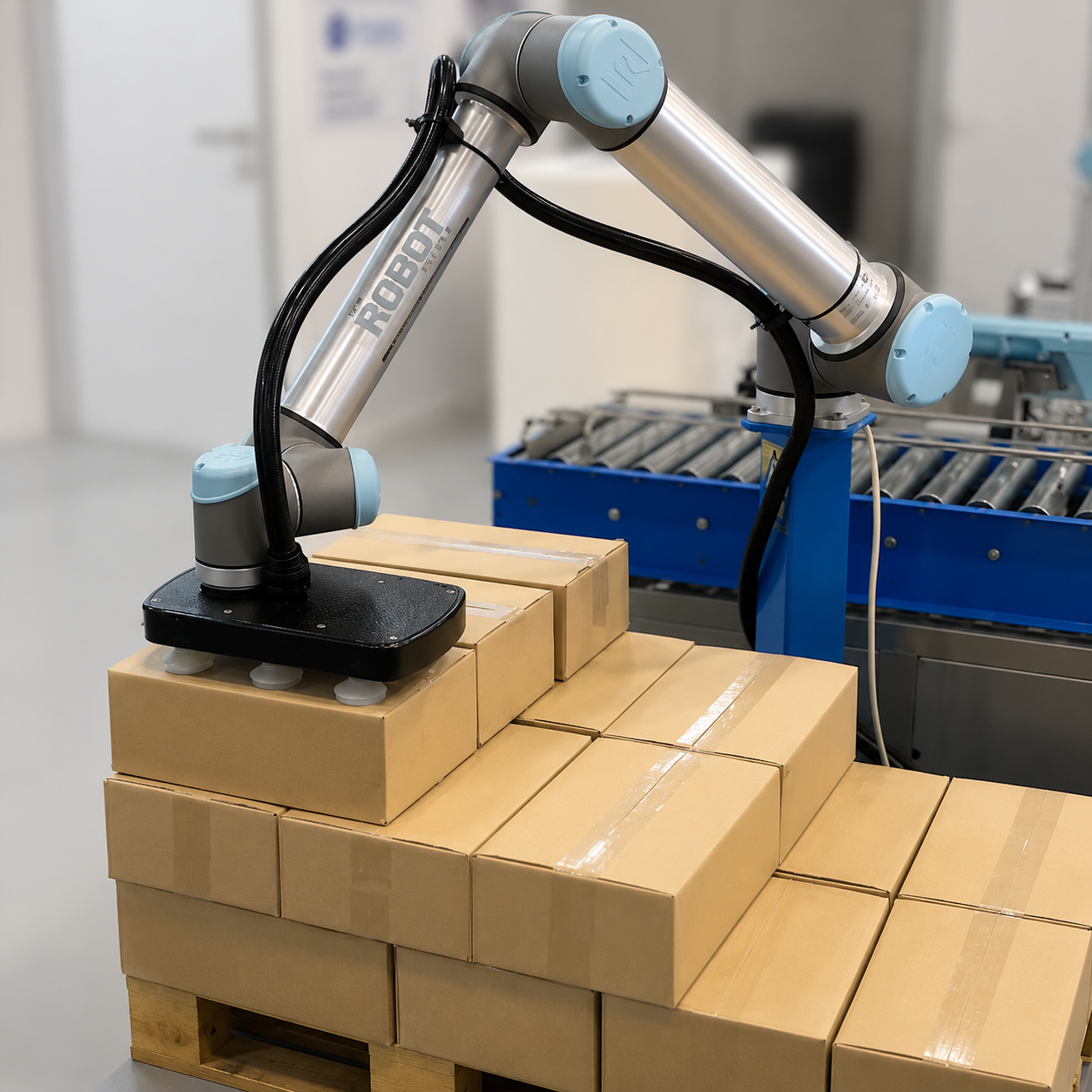

Depalletising too
The same collaborative system can unload pallets just as easily as it builds them, feeding product onto your line without the manual handling, the strain injuries or the downtime. One cobot, both ends of the process.
Planning your system
Choosing the right palletising setup
The right palletiser depends on your product and your line. These are the factors we look at first. New to cobots? Start with our guide to collaborative robots.
Common questions
Palletising FAQs
What is a robot palletiser?+
A robot palletiser (spelt palletizer in the US) is a robot cell that takes cases, cartons or bags off the end of your production line and stacks them onto a pallet in a set pattern. Palletising, or palletizing, with a cobot uses safety area scanners instead of fixed fencing, so the cell fits a small footprint and your team can work around it. We build each robotic palletiser around your products, pallet patterns and floor space.
Does a cobot palletiser need fencing?+
No traditional fixed guarding is needed. Programmable Category 3 area scanners slow the robot when someone approaches and bring it to a safety stop if they come closer, with a push-button reset to restart.
Can it be moved between lines?+
Yes. The cell is not bolted down, so it can be moved to another line with a pallet jack or forklift.
What does it need to run?+
Power and factory air. The vacuum pump that drives the gripper is part of the cell.
Can it depalletise as well?+
Yes. A cobot can also lift cartons off a pallet onto a conveyor, as covered in the depalletising section above and in our Teralba palletising and depalletising project.
Can I try one before buying?+
Yes. You can rent a cobot and see it working before committing to a purchase.
What products can it handle?+
Boxes and cartons, sacks and bags, bottles, trays, crates and bundles. The carbon fibre gripper has multiple vacuum zones so it can pick different box sizes.
How do we know it will keep up with our line?+
Before you buy, we analyse your current line rate to confirm the cobot can match it, draw the cell into your layout and test with samples of your product.
What is included in the price?+
Our proposals are fixed-price and include design, build, programming, freight, commissioning and training.
How much does a robotic palletiser cost in Australia?+
It depends on what the cell has to do. The main cost drivers are the robot model and payload, the gripper, whether you run one or two pallet stations, whether a lift column is needed for taller pallets, the infeed conveyor, the number of products and pallet patterns, and the safety scanning. We price every robotic palletiser as a fixed-price proposal covering design, build, programming, freight, commissioning and training, so you know the full cost up front. If you would rather start smaller, renting a palletising robot spreads the cost and lets you prove the return first.
